Key Benefits

From initial concept to finished product, the engineers of CRD have created complex instruments, machines and process controls as well as simple light effects modules and electronics for artistic pieces.

Some of the devices pictured are examined in additional detail elsewhere in the CRD web site but are included here to  give demonstrate our electronic design and packaging services.

Click on picture to see close up

Semiconductor failure, test and evaluation interface.  Allows the engineer to connect to a wafer via a "probe card" interface, then by manipulating the front panel switches configure any combination of open, grounded or Vcc connected probes.  Additionally, on "open" channels signals may be injected or extracted as required.  This series of equipment is custom created for each client based on the number of probed points and interface options desired.

Click on picture to see close up

Custom research instrument which produces an output pulse delayed from the input trigger pulse from 0 - 999 mSEC selectable by front panel thumbwheel switches .  Additionally, once the unit outputs the delayed pulse a user definable re-trigger hold-off from 0 - 9,990 mSEC is engaged preventing triggering within the exclusion window.

Click on picture to see close up

Internal Photo of Delayed Trigger Generator shows routing of the modest wiring harness between the "off-the-shelf" linear power supply, custom designed printed circuit board and the front panel.  Clearly, ease of service was a design consideration, although the simple logic and low I/O voltage levels make it unlikely that  service will ever be required.

Click on picture to see close up

Electro-mechanical design with custom engineered electronic user interface and machine control.  The operator configures and runs the instrument from two menu screens and a minimal complement of controls.  This unit is also capable of being controlled externally with LabView or other similar industrial control software.

Click on picture to see close up

This five channel scanning analyzer utilizes four wire Kelvin resistance measurement techniques to accurately characterize the device under test.  Additionally, the instrument compares each measurement against user set LOW/HIGH - PASS/FAIL limits.  Finally the system utilizes digital pattern recognition to confirm proper end to end termination as well as testing for internal shorts and opens.

Click on picture to see close up

This unusually shaped printed circuit assembly is the heart of a hand held field training device.  The large round opening provides clearance for a Lithium battery.  The three small push switches activate different features of the device.  Close inspection of the slot on the upper left side of the board reveals a three stage (YELLOW - GREEN - RED) go/no-go style gram force detector fashioned from 10 mil BeCu wire.

Click on picture to see close up

This unusual and expensive control relay was sent to us from a remotely located facility.  The client's concern was to validate the operational integrity of this devise prior to replacing it.  The array of wires, lights and substitution box are configured to simulate the oven gas valves and infrared flame detectors.  Our bench testing proved the control relay to be fully operational which assisted the client in isolating the fault to a low cost sensor.

Click on picture to see close up

This early version of the "Delayed Trigger Generator" pictured above illustrates our ability to hand wire a single unit when factors do not support the design and fabrication of a printed circuit board.

Click on picture to see close up

This collage  demonstrates our versatility in designing printed circuit boards.  Simple double sided boards as well as more complex multi-layer and controlled impedance examples are pictured.  The applications highlighted by these samples cover semiconductor probe cards, industrial monitoring and motion control, lighting effects, test instrument and artistic enhancement designs.

Click on picture to see close up

Two Channel Lighting Controller.

Simple traic driver circuit driven by a 555 timer IC provides alternating illumination of two AC line voltage lighting loads.  This unit provides special lighting effects for products of a local artist.

Click on picture to see close up

The pictured assembly switches between three AC line voltage lighting loads.  As it changes from channel to channel it fades the active channel to off while bringing the next channel to full brightness.  It is also possible to daisy chain up to three units controlling a sequence of nine lighting loads.

Click on picture to see close up

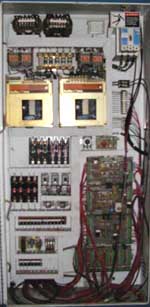

CRD engineers can service, modify and rebuild industrial machine and process control cabinets as well as the machines themselves.  Additionally, CRD has designed, fabricated and installed new and rebuilt controls on a variety of machine types.  This service not only addresses needs within the "main" control cabinet but wiring, pneumatic, safety and operator interface issues.  In many cases CRD has completely remanufactured every aspect of entire machines.
